Caernarfon driveway gates

Caernarfon driveway gates in Softwood

Made to measure in a choice of five timbers, you can choose the Caernarfon gates with the swan neck as either a high centre (rising from the hinge side of the gates) or low centre (dropping from the hinge side).

Usually the swan neck head rises (or drops!) 6″ /150mm as standard.

Got a specific rise in mind for the swan neck head? These can usually be accommodated – please get in touch with your requirements.

Swan neck Caernarfon driveway gates

Rear view of our Caernarfon driveway gates showing the rails and bracing.

Get a quote on the Caernarfon gates

Caernarfon pair with St Asaph single Idigbo

Our Caernarfon pair, combined with a St Asaph pedestrian gate (Idigbo – Hardwood)

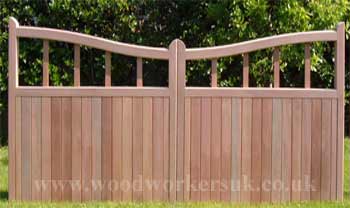

Low centre version of our Caernarfon driveway gates

Low centre version of our Caernarfon gates (in Prime European Oak, Hardwood)

Shown as a fully closed boarded gate above, the Caernarfon is also available as an open boarded gate.

We only manufacture the Caernarfon as a pair of driveway gates, for single pedestrian gates to match why not try our St Asaph gates and match the top rail height to that of the Caernarfon?

Caernarfon specifications

All top edges on any horizontal rails of the Caernarfon feature an angled water run off, this stops the build up of moisture on your gates and makes for a longer lifespan. The stiles of the Caernarfon (vertical outer uprights of the gate frame) also have rounded outer edges.

Available in the following kiln dried timbers –
Prime European Oak (Hardwood),
Accoya (Acetylated Softwood),
Idigbo (Hardwood),
Meranti (Hardwood),
Scandinavian Redwood (Softwood)

Automation – Can be automated, please contact us for details
Construction – Through wedged, morticed & tenoned jointed

Height – Made to measure, usually with a 6″/150mm rise from the lowest point
(other rises can be accommodated – please contact us)
Width – Made to Measure
Stiles – 2 3/4″ x 2 3/4″ / 70mm x 70mm
Top rail/Head & Full thickness mid rails – 2 3/4″ x 2 3/4″ / 70mm x 70mm
Hidden rails (visible from rear only) – 2 3/4″ x 1 7/8″ / 70mm x 48mm
Boarding – 3 3/4″ x 5/8″ / 95mm x 15mm
Infill – 1 3/4″ x 3/4″ / 45mm x 18mm

Caernarfon Guide prices

The Caernarfon guide prices are based on a pair of gates 5ft 6 rising to 6ft high x 6ft overall wide (approx 1680mm rising to 1830mm high x 1830mm overall wide) equally split gates, these are NOT from prices, smaller gates will be more economical etc – contact us for a price! All prices are correct time of insertion and are EX VAT. Free delivery to most parts of the UK mainland is included – exclusions do apply, again please contact us.


Scandinavian Redwood – Softwood £510

We use Unsorted Scandinavian Redwood, despite it’s name it is sorted for smaller knot size and less of them for better strength. Creamy white to yellow in colour.
Can be painted or stained.
Approx weight guide 550 KG/M3


Meranti – Hardwood £845

Used as a Mahogany substitute. Can vary in colour from a pinky red to dark red colour.
Can be painted or stained.
Approx weight guide 550-710 KG/M3


Idigbo – Hardwood £1034

A plain light brown timber which gives the Oak look but without the Oak price tag. As strong as English Oak. Also known in the trade as ‘poor mans oak’.
Can be stained, however avoid painting.
Approx weight guide 560 KG/M3


Accoya – Modified Softwood £1379

The most longer lasting timber on the market! Doesn’t absorb water so doesn’t rot, also as water is not absorbed then any movement within the timber is minimal! Ideal even for the most challenging enviroments. Timber is guaranteed for 50 years againts rot and decay. Recommended ironmongery and fixings for Accoya is Marine Grade Stainless Steel. Can be painted or stained.
We use Grade A1 Accoya specially sorted with few knots.
Approx weight guide 510KG/M3


European Oak – Hardwood £1784

Oak needs no introduction, appearance wise it is a light yellow to brown colour. We use the Prime grade of European Oak with fewer knots for unbeatable strength and maximum wow factor! Recommended fixings for Oak is Marine Grade Stainless Steel.
Can be stained, as with Idigbo avoid painting.
Approx weight guide 720 KG/M3
