Wooden 5 Bar Estate Gates

All our 5 bar Estate gates are made to measure (in widths of up to a maximum of 6ft / 1830mm wide each gate) in a choice of Hardwood (Meranti, Idigbo, European Oak) and Softwood (Scandinavian Redwood). Available with (or without) the elongated 'Crooked' hanging stile (pictured below with the 'crooked' hanging stile).

Wooden 5 bar estate gates with elongated 'crook' stiles

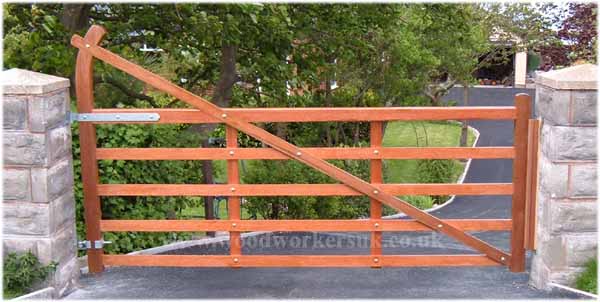

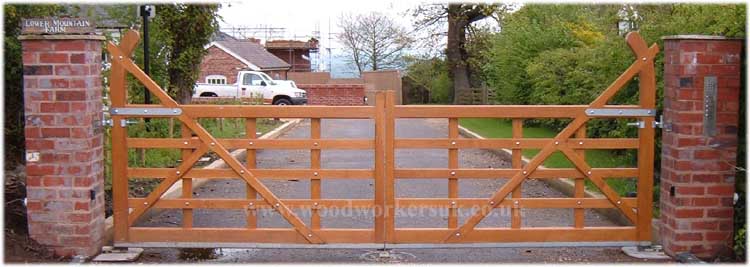

The Estate gates pictured above (in Idigbo, Hardwood) are a special and suitable for below ground automation as they feature a solid bottom rail. The more common configuration is pictured below (in Meranti, Hardwood). Due to their size and shape we regret that our wooden Estate gates are only available either collected from our workshops or delivered locally to us.

Estate gate specifications

Made to measure 5 bar estate gates

Available made to measure upto a maximum of 6ft /1830mm wide (each gate),

Height - 4ft / 1220mm to top of top rail
Height (Elongated 'crook' stile) - 6ft / 1830mm overall high,
Top rail - Tapers down from 3 3/4" (95mm) to 2 3/4" (70mm)
Hanging stile - 3 3/4" (95mm) x 2 3/4" (70mm) thick,
Closing stile - 2 3/4" (70mm) x 2 3/4" (70mm)
Rails - 2 3/4" (70mm) x 1 1/4" ( 30mm)
and based on our traditional through wedged morticed and tenon jointed frame for strength

Choose from Meranti, Idigbo, European Oak (Hardwoods) or Scandinavian Redwood (Softwood),
Available either collected from our workshops or delivered locally only.
