Gothic arched pedestrian gates

There is nothing scary about our Gothic arched pedestrian gates – that is unless you’ve a phobia of beautiful, made to last timber gates!

Pictured in Meranti, the Gothic arched gate is ideal if you’re after a pedestrian gate – whether you live in a castle or something a bit more modest.

Made to measure in Prime European Oak, Meranti, Idigbo (Hardwoods) and long lasting Accoya acetylated softwood

Hardwood Gothic arched gates

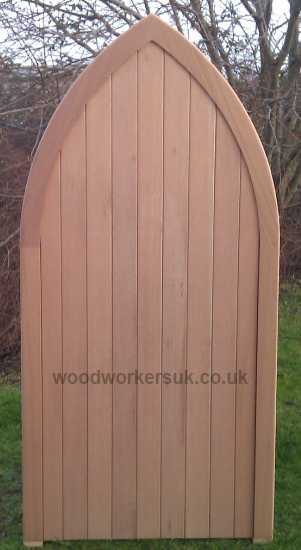

Gothic arched pedestrian gate in Meranti (Click for larger image)

Available made to measure in widths up to 3ft/915mm wide.
Not manufactured in Scandinavian Redwood.

Gothic arched gate on the bench

Gothic arched pedestrian gate on the bench in our workshops

Rear view of Gothic gate

Rear view of our Gothic arched gates

Get a price on our Gothic gates
If you require one of our arched gothic gates to fit an existing archway, then please contact us with your requirements, as we can manufacture you something to suit your existing openings – you can read more on fitting one of our range of arched gates into a wall over on our semi circular arched gate page

Not the type of arched gates you’re looking for? Then why not try our Semi circular arched or Tudor arched gates?

Arched gothic gates – specifications

All top edges on any horizontal rails of the Gothic arched gate feature an angled water run off, this stops the build up of moisture on your gates and makes for a longer lifespan. The stiles of the Gothic gates (vertical outer uprights of the gate frame) also have rounded outer edges, this rounding off continues up over the top of the gate.

Available in a choice of four timbers
Prime European Oak (Hardwood),
Accoya (Modified Softwood),
Idigbo (Hardwood),
Meranti (Hardwood),

Construction – Through wedged, morticed & tenoned

Height – Made to measure
Width – Made to Measure up to a maximum width of 3ft/915mm wide
Stiles / Gothic arched head – 2 3/4″ x 2 3/4″ / 70mm x 70mm
Barefaced rails (visible from rear only) – 2 3/4″ x 1 7/8″ / 70mm x 48mm
Boarding – 3 3/4″ x 5/8” / 95mm x 15mm

Gothic arch Guide prices

The Gothic arch gate guide prices are based on a gate 6ft high x 3ft overall wide (approx 1830mm high x 915mm wide), these are NOT from prices, smaller gates will be more economical etc – contact us for a price! All prices are correct time of insertion and are EX VAT. Free delivery to most parts of the UK mainland is included – exclusions do apply, again please contact us.

For arched postern style gates (gates that will fit into an arched brick opening), please contact us for guide prices.

Our Gothic arched gate is only manufactured in Hardwood and Accoya.

Meranti – Hardwood £651

Used as a Mahogany substitute. Can vary in colour from a pinky red to dark red colour.
Can be painted or stained.
Approx weight guide 550-710 KG/M3


Idigbo – Hardwood £773

A plain light brown timber which gives the Oak look but without the Oak price tag. As strong as English Oak. Also known in the trade as ‘poor mans oak’.
Can be stained, however avoid painting.
Approx weight guide 560 KG/M3


Accoya – Modified Softwood £1020

The most longer lasting timber on the market! Doesn’t absorb water so doesn’t rot, also as water is not absorbed then any movement within the timber is minimal! Ideal even for the most challenging enviroments. Timber is guaranteed for 50 years againts rot and decay. Recommended ironmongery and fixings for Accoya is Marine Grade Stainless Steel. Can be painted or stained.
We use Grade A1 Accoya specially sorted with few knots.
Approx weight guide 510KG/M3


European Oak – Hardwood £1261

Oak needs no introduction, appearance wise it is a light yellow to brown colour. We use the Prime grade of European Oak with fewer knots for unbeatable strength and maximum wow factor! Recommended fixings for Oak is Marine Grade Stainless Steel.
Can be stained, as with Idigbo avoid painting.
Approx weight guide 720 KG/M3
