Timber gates and wooden garage doors handcrafted to your own sizes! |
|---|
|
Gate-Expectations | |
|---|---|---|
Tel - 01352 718007 |
Fax - 01352 719614 |
|
Wooden gates available in pairs... |
|---|
The Derwent... |

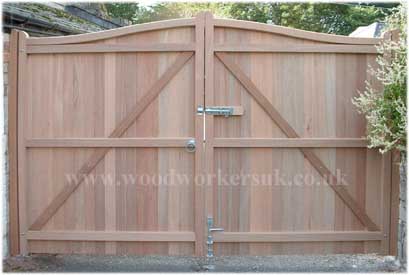

Shown left is the fully boarded Meranti (hardwood) Derwent pair. Curve rises by 6'' (150mm) from the lowest point. Alternatively, if you prefer the curve can slope down from the stiles to the centre. Below is the rear view of the Derwent. The Derwent is also available as open boarded gate. |
 |
|---|
 |
Specification Stiles, head, Ex 3'' x 3'' (75mm x 75mm) Rails, braces, Ex 3'' x 2 1/2'' (75mm x 63mm) Infill T+G boarding EX 4'' x 3/4'' |
|---|
The specification for the open boarded Derwent is the same except for the infill T+G boards, which are replaced with - infill boarding Ex 3'' x 3/4 " (75mm x 19mm) spaced at gaps no greater than 2'' (50mm). |
|---|
The Thirlmere... |
 |
Shown left is a close boarded pair of Thirlmere in softwood. Curve rises by 6'' (150mm) from lowest point. Stiles, head, Ex 3'' x 3'' (75mm x 75mm) Rails, braces, Ex 3'' x 2 1/2'' (75mm x 63mm) T+G infill board (close boarded gate only) Ex 4" x 3/4 " (100mm x 19mm) |
|---|
| Pictured right is the rear view of the Thirlmere. Again, if you prefer the curve can slope down from the stiles to the centre. The Thirlmere is also available as open boarded gate. The specification for the open boarded Thirlmere is the same except for the T+G infill boards which are replaced with - infill boarding Ex 3'' x 3/4'' (75mm x 19mm) at gaps no greater than 2'' (50mm). |
 |
|---|
| If you like either of these gates then please contact us with the sizes you require. |
|---|
| Back to Wooden gates | Forward to wooden driveway gates page 2 |
|---|
