Elwy wooden garage doors

Containing two large openings for glazing (per door), our Elwy side hung garage doors are ideal if you don’t fancy the more complex glazing bars of either our Brenig or Conway garage doors.

As with all our garage doors these can be customised, so for example if you wish you could lift/drop the transom (the horizontal rail immediately below the glazing) to a height of your choosing!

Elwy wooden garage doors

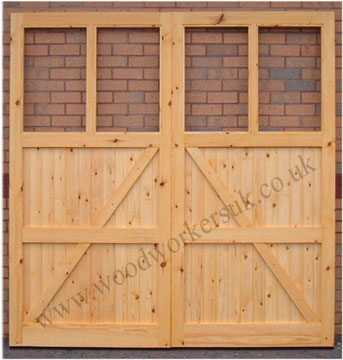

Elwy garage doors shown in Unsorted Scandinavian Redwood (Softwood)

The Elwy garage doors offers the best of both worlds, beautiful timber doors in either softwood or hardwood, as well as the benefit of natural light flooding into your garage!

Give your garage a facelift – these stunning doors would adorn any garage and would certainly attract many admiring comments!

Why not get in touch for a fully personalised quote on the Elwy doors?

Elwy softwood garage doors

Elwy garage doors with two, pre-beaded openings for glazing per door. Again the Scandinavian Redwood (Softwood) version is shown

Elwy garage door specifications

Supplied in all five of the timbers we use
Prime European Oak (Hardwood),
Idigbo (Hardwood),
Meranti (Hardwood),
Accoya (Acetylated Softwood)
Unsorted Scandinavian Redwood (Softwood)

Construction – Through, wedged morticed & tenoned
Height – Made to measure
Width – Made to measure

Stiles – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Transomes – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Hidden rails (visible from rear only) – 3 3/4″ x 7/8″ / 95mm x 22mm
Bottom rails – 5 3/4″ x 1 3/4″ / 145mm x 45mm
Mullions – 2 3/4″ x 1 3/4″ / 70mm x 45mm

Rebated meeting stiles (the doors overlap when closed)
Pre-beaded internally – Supplied ready for glazing

Elwy guide prices

The Elwy guide prices are based on a pair of doors 6ft 6 high x 6ft 6 overall wide (approx 1980mm high x 1980mm), these are NOT from prices, smaller doors will be more economical etc – contact us for a price! All prices are correct time of insertion and are EX VAT. Free delivery to most parts of the UK mainland is included – exclusions do apply, again please contact us.


Scandinavian Redwood – Softwood £567

We use Unsorted Scandinavian Redwood, this is sorted for smaller knot size and less of them for better strength. Can be painted or stained.


Meranti – Hardwood £848

Used as a Mahogany substitute, can be painted or stained. Colour wise varies from a pinky red to dark red colour.


Idigbo – Hardwood £1007

Gives the Oak look but without the Oak price tag. Can be stained.


Accoya – Modified Softwood £1156

The most longer lasting timber on the market! Doesn’t absorb water so doesn’t rot! Can be painted or stained. We use Grade A1 Accoya specially sorted with few knots.


European Oak – Hardwood £1214

Oak needs no introduction. We use the Prime grade of European Oak with fewer knots for unbeatable strength and maximum wow factor! Can be stained.

Enamoured with our Elwy garage doors? Then get a quote!

Like our Elwy garage doors? Want a full quotation?
Then please get in touch using the form below. You can also give us a call on 01745 362444
  • Please include height & overall width of doors required
    (If a frame is required, please include height and overall width of opening)
