Menai timber side hinged garage doors
Three solid, full thickness rails, wedged morticed and tenon jointed framework – give them a go if you dare!
Uniquely structured with an offset central timber rail (this can be lifted up or dropped to suit whatever you need – please contact us!) for strength and rigidity. We also happen to think it looks rather nice!

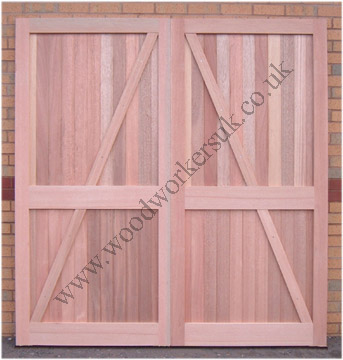

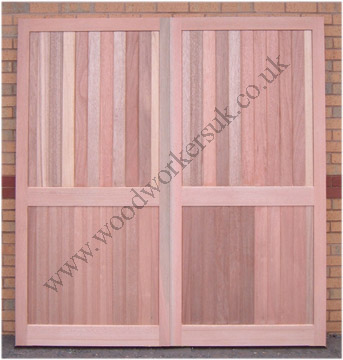

A pair of our Menai garage doors in painted Softwood – However we don’t use ‘paint grade softwood’ so they look great stained too!
The simple elegance of these doors, matched with our joinery expertise and combined with beautiful timbers is the answer to your garage door prayers!
The Menai garage doors are supplied fully finished sanded ready for final decoration, whether you choose the hardwood or softwood versions each can be painted or stained – we don’t use ‘joinery grade softwood’ so you have no problem in staining the softwood – it looks just as good!
Three solid, full thickness rails?

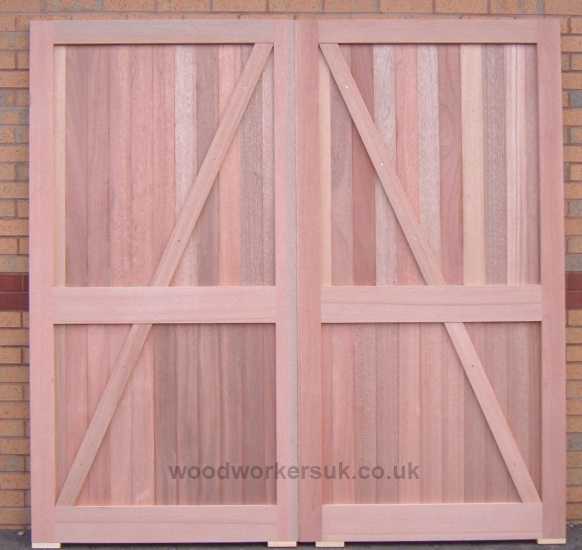

As mentioned above the Menai doors have three solid full thickness rails, another words if you look at both the front and back of the doors then the three rails are visible from both sides of the doors.
Because of these three solid rails, the Menai timber garage doors are ideal for larger openings where strength is required and also a perfect choice if your looking to automate a pair of side hinged garage doors.
Menai garage door specifications
Prime European Oak (Hardwood),
Idigbo (Hardwood),
Meranti (Hardwood),
Accoya (Acetylated Softwood)
Unsorted Scandinavian Redwood (Softwood),
Construction – through, wedged morticed & tenoned jointed frame
Width – Made to measure
Stiles – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Heads/Top rails – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Bottom & Centre rails – 5 3/4″ x 1 3/4″ / 145mm x 45mm
Rebated meeting stiles (the doors overlap when closed).
Mad about our Menai? Then get a quote using the form below!
