Made to measure in sizes you require

British woodworking federation approved

3 Generations of time-served master craftsmen

Elwy Garage Doors

  • Sleek & Simple doors: Each door features two large openings for glazing, perfect for those who prefer a cleaner, more minimalist look without intricate glazing bars.
  • Fully Customizable: Adjust the transom height, opt for stable-style doors, or create an unequal pair of doors for a truly personalized touch.
  • Tailor-Made to Fit: Available in sizes up to 2400mm high and 3000mm wide for pairs, or as single pedestrian doors – designed to match your exact requirements.
  • Timber Choices for Every Taste: Choose from high-quality hardwoods or cost-effective softwoods like Scandinavian Redwood, offering beauty and durability.
  • Natural Light & Elegance: Let sunlight flood your garage while adding a timeless timber finish that elevates the look of your property.
Want to use imperial instead of metric? Use our converter here

Choose from a single door or a pair of doors.

Singles are available upto 1400mm wide & pairs of doors to suit openings upto 3000mm overall openings
Usually your doors would be hung from a timber door frame, if choosing a door frame then we need your brickwork opening measurements (i.e. tight width measured from brick to brick at narrowest point and height from floor to underside of lintel at shortest point) - we then make the door frame to fit the opening and the doors to fit the door frame!

As standard, the door frame is a 3 piece door frame (head/top piece and 2 stiles/side pieces).

A garage door floor seal can also be supplied

Frame can be upgraded to non-vehicle access version with timber cill/bottom piece and a Stormguard threshold if you choose to customise your doors & frame.
Enter the opening height (either structural opening height if a door frame is required or overall opening height within your door frame if you are using your existing door frame).

Get a price online for heights from 1600mm to 2400mm high. For heights smaller/larger than this please contact us.
Enter the opening width (either structural opening width if a door frame is required or overall opening width if you are using your existing door frame).

Get a price online for widths from 1500mm to 3000mm wide. For widths smaller/larger than this please contact us.

Prices online are for heights between 1600mm to 2400mm high & 1500mm wide to 3000mm wide, for any sizes outside these please contact us at
enquiries@woodworkersuk.co.uk for a personalised costing.
Enter the opening height (either structural opening height if a door frame is required or overall opening height if you are using your existing door frame).

Get a price online for heights from 1600mm to 2400mm high. For heights smaller/larger than this please contact us.
Enter the opening width (either structural opening width if a door frame is required or overall opening width if you are using your existing door frame).

Get a price online for widths from 700mm to 1400mm wide. For widths smaller/larger than this please contact us.

Prices online are for heights between 1600mm to 2400mm high & 700mm wide to 1200mm wide, for any sizes outside these please contact us at
enquiries@woodworkersuk.co.uk for a personalised costing.
Please select from our range of timbers
Please select from our range of timbers
Three piece door frames are supplied pre-jointed in same choice of timber as doors.

If selecting a door frame then we need the height from floor to underside of lintel.

In width we required the brickwork opening measurement.

We then manufacture the door frame to suit your opening and the doors to suit the door frame.
Please select from our range of timbers
Please select from our range of timbers
Three piece door frames are supplied pre-jointed in same choice of timber as doors.

If selecting a door frame then we need the height from floor to underside of lintel.

In width we required the brickwork opening measurement.

We then manufacture the door frame to suit your opening and the doors to suit the door frame.
garage door frame sections
Accoya is priced as suitable for painting, if you intend to stain the timber then please contact us for a price enquiries@woodworkersuk.co.uk.
Please let us know which door you want to be the main opening door when viewed from the outside & whether the doors are to open in or out?
Please let us know which door you want to be the main opening door when viewed from the outside & whether the doors are to open in or out?
This is where one door of the pair is larger than the other, useful for if you want mainly pedestrian access through the doors.

Split on our Elwy doors would be done to maintain equally sized openings (for glazing width) across the two doors - please contact if you are unsure.
What are unequally split garage doors
This allows the top section of the doors to open independently of the bottom section.

Height of split on the Elwy is determined by transome (rail at which the glaziing would start) height.

Additional hinges & ironmongery will be required for the stable door option.
This allows the top section of the doors to open independently of the bottom section.

Height of split on the Elwy is determined by height of transome (height at which the glazing starts).

Additional hinges & ironmongery will be required for the stable door option.
What are stable style garage doors
Weather mould or drip fits to front of doors (usually fitted after doors have have been hung) and acts as a water run of and taking the water away from bottom edge of door.
Image showing what a weathermould is and where it fits on a door
Weather mould or drip fits to front of doors (usually fitted after doors have have been fitted) and acts as a water run off, stopping water ingress as a result of capillary attraction.
Cill is in supplied in same timber as the doors & frame, with exception being, a Meranti cill (Hardwood) is supplied for use with a Scandinavian Redwood set of doors & frame. Stiles (side pieces) of the door frame are morticed and tenon jointed into the cill.
Cill is in supplied in same timber as the doors & frame, with exception being, a Meranti cill (Hardwood) is supplied for use with a Scandinavian Redwood set of doors & frame. Stiles (side pieces) of the door frame are morticed and tenon jointed into the cill.
what is a protruding cill
Garage door threshold seal
Ideal if you have an out of level/sloping garage floor from side to side or you need to keep you doors up from the floor to clear obstructions as they are opened (rising driveways for example). Comes complete with adhesive.
Ideal if you have an out of level/sloping garage floor from side to side or you need to keep you doors up from the floor to clear obstructions as they are opened (rising driveways for example). Comes complete with adhesive.
'Stick on' draught excluder (supplied loose) for meeting stiles of doors and when ordered, the door frame.
'Stick on' draught excluder (supplied loose) for meeting stiles of doors and when ordered, the door frame.
garage door ironmongery options
All packs contain 2 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 3 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 2 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 3 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
locking options for side hinged garage doors
Select your choice of locks if required. Mortice deadlocks & Sashlocks are the most secure and operated by key from either side.

Brenton Padbolts are lockable by way of a padlock (not supplied).

Long throw locks fit to (usually the rear) of the gates, double locking is key operated from either side, single locking is key operated from front, with latch on rear to unlock.

Mortice sashlocks require handles (see below) & both the mortice deadlock & sashlocks come with rebate kits.
Choose your hinges
Contains 1 Pair 16" / 400mm Cranked band & gudgeon hinges & Black on Galv & Stainless Steel Cranked band & gudgeon options are 450mm/18" hinges (these are not manufactured in smaller sizes than these). Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Contains 1.5 Pair 16" / 400mm Cranked band & gudgeon hinges & Black on Galv & Stainless Steel Cranked band & gudgeon options are 450mm/18" hinges (these are not manufactured in smaller sizes than these). Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Contains 1 Pair 18" / 450mm Cranked band & gudgeon hinges. Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Contains 1.5 Pair 18" / 450mm Cranked band & gudgeon hinges. Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Contains 1 Pair 24" / 600mm Cranked band & gudgeon hinges. Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Contains 1.5 Pair 24" / 600mm Cranked band & gudgeon hinges. Butt hinges can be supplied if required, these are not recommended for outward opening doors.
Select your choice of locks if required. Mortice deadlocks & Sashlocks are the most secure and operated by key from either side.

Brenton Padbolts are lockable by way of a padlock (not supplied).

Long throw locks fit to (usually the rear) of the gates, double locking is key operated from either side, single locking is key operated from front, with latch on rear to unlock.

Mortice sashlocks require handles (see below) & both the mortice deadlock & sashlocks come with rebate kits.
Any additional details you think might be relevant to help us build your bespoke product.
Grand total
Pay a deposit of 25% per item
Current lead times are approx 6-8 weeks at present

Description

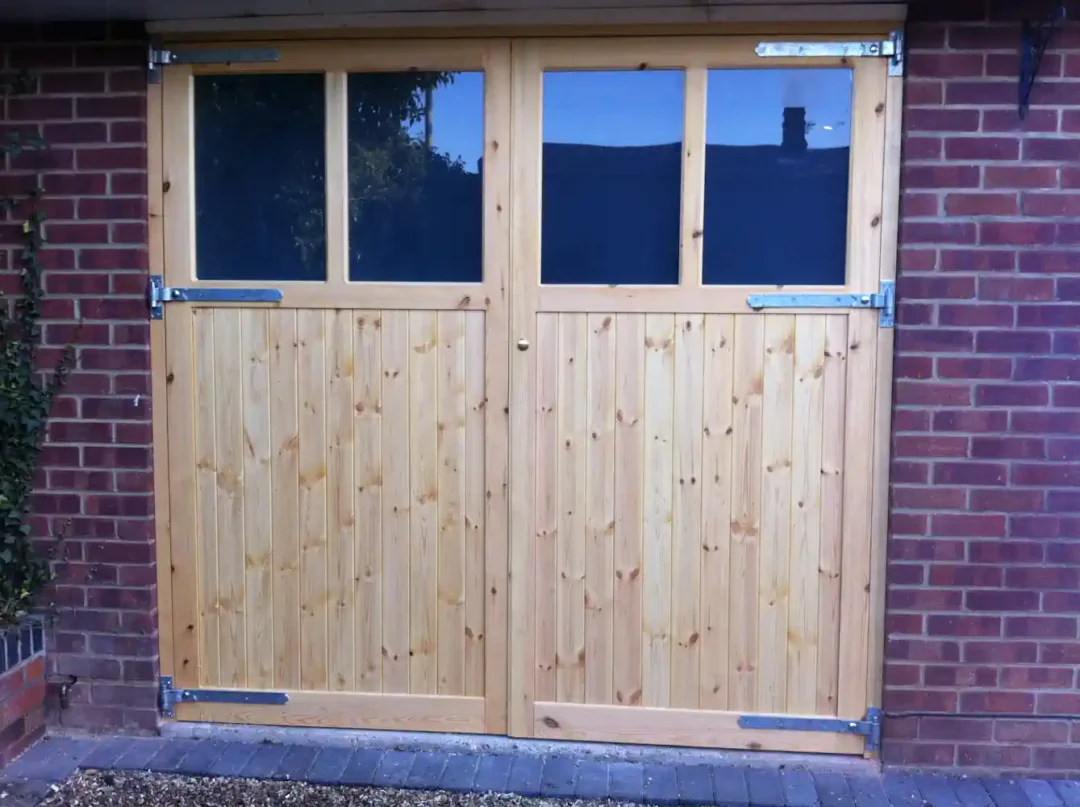

The Elwy garage doors offers the best of both worlds, beautiful timber doors in either softwood or hardwood, as well as the benefit of natural light flooding into your garage!

Give your garage a facelift – these stunning doors would adorn any garage and would certainly attract many admiring comments!

Construction – Through, wedged morticed & tenoned
Height – Made to measure
Width – Made to measure
Stiles – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Transomes – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Hidden rails (visible from rear only) – 3 3/4″ x 7/8″ / 95mm x 22mm
Bottom rails – 5 3/4″ x 1 3/4″ / 145mm x 45mm
Mullions – 2 3/4″ x 1 3/4″ / 70mm x 45mm
Rebated meeting stiles (the doors overlap when closed)
Pre-beaded internally – Supplied ready for glazing
Glazing – Can take upto 12mm thick double glazing (not supplied)

Our Guarantee

Gate Expectation’s mission is to bring the highest quality bespoke measured wooden gates, side hung wooden garage doors and general joinery items to the market at a quality and price point that can’t be matched.

If not completely satisfied we offer 30-day no hassle returns on all our off-the-shelf range.

Three generations of master carpentry and joinery experience in each and every product. Read more about our history here.
