Snowdonia Garage Doors

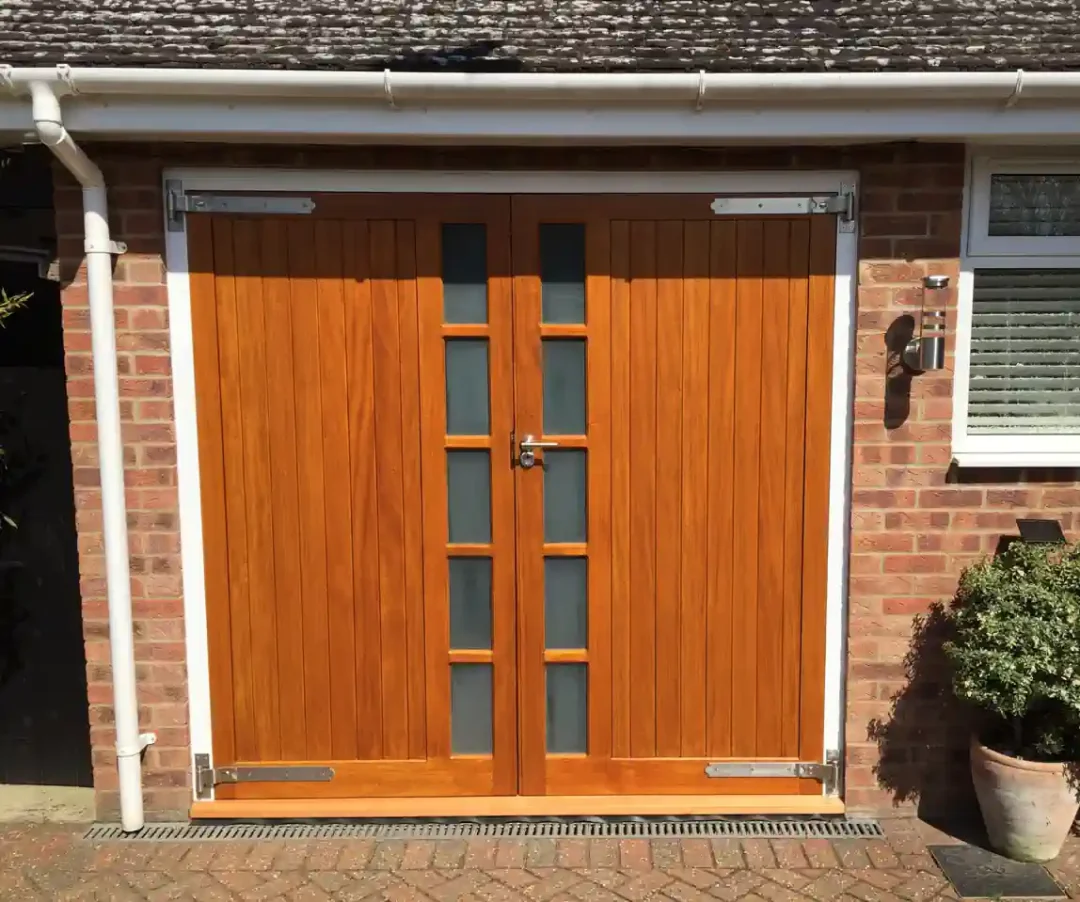

If you’re looking for a more contemporary garage door then the Snowdonia may be right up your street (or mountain!).

Our Snowdonia features five vertically stacked openings for glazing per door, all being internally beaded, meaning when you come to fit your glazing, it fits from the inside of your garage giving more security and more weatherproofing.

Want to use imperial instead of metric? Use our converter here

Enter the opening height (either structural opening height if a door frame is required or overall opening height if you are using your existing door frame).
Enter the opening width (either structural opening width if a door frame is required or overall opening width if you are using your existing door frame).

Prices online are for heights between 1600mm to 2400mm high & 1800mm wide to 3000mm wide, for any sizes outside these please contact us at
enquiries@woodworkersuk.co.uk for a personalised costing.
Scandinavian Redwood (+...)
Meranti (+...)
Idigbo Hardwood (+...)
A1 Accoya (+...)
Prime European Oak (+...)
Please select from our range of timbers
Accoya is priced as suitable for painting, if you intend to stain the timber then please contact us for a price enquiries@woodworkersuk.co.uk.
Three piece door frames are supplied pre-jointed in same timber as your doors. Choice of a 70mm x 70mm wide or 70mm x 95mm wide frame.
garage door frame sections
Please let us know which door you want to be the main opening door when viewed from the outside & whether the doors are to open in or out?
You can customise your doors by having unenqually split doors (one door bigger than another) and by adding a timber cill (with Stormguard threshold) to the door frame (if added)
What are unequally split garage doors
This is where one door of the pair is larger than the other, useful for if you want mainly pedestrian access through the doors.
Usually the smaller door would be around 915/3ft wide for pedestrian access and would be the door that opens first but can be whatever you require - however max size of the larger door would be 1500mm / 59".
what is a protruding cill
Cill is in supplied in same timber as the doors & frame, with exception being, a Meranti cill (Hardwood) is supplied for use with a Scandinavian Redwood set of doors & frame.
'Stick on' draught excluder (supplied loose) for meeting stiles of doors and when ordered, the door frame.
Garage door threshold seal
No floor seal
15mm high garage door floor seal
Yes - 15mm high (+£38.40)
20mm high garage door floor seal
Yes - 20mm high (+£54.00)
25mm high garage door floor seal
Yes - 25mm high (+£68.40)
Ideal if you have an out of level/sloping garage floor from side to side or you need to keep you doors up from the floor to clear obstructions as they are opened (rising driveways for example). Comes complete with adhesive.
garage door ironmongery options
All packs contain 2 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Options for Stainless steel are 450mm/18" Adjustable hinges & 2 x 18" dropbolts.)
All packs contain 3 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Options for Stainless steel are 450mm/18" Adjustable hinges & 2 x 18" dropbolts.)
All packs contain 2 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Options for Stainless steel are 600mm/24" Adjustable hinges & 2 x 18" dropbolts.)
All packs contain 3 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Options for Stainless steel are 600mm/24" Adjustable hinges & 2 x 18" dropbolts.)
locking options for side hinged garage doors
No lock
200mm / 8" Black Brenton Padbolt
8" Black Brenton Padbolt (+£3.26)
Brenton-Padbolt-Galvanised-200mm-8-Inch
8" Galvanised Brenton Padbolt (+£3.60)
200mm / 8" Black on galvanised Brenton Padbolt
8" Black on Galvanised Brenton Padbolt (+£13.20)
200mm / 8" Marine Grade Stainless Steel Padbolt
8" Marine Grade Brenton Padbolt (+£34.80)
50mm Single locking long throw lock
50mm Single locking long throw lock (+£38.40)
50mm double locking long throw gate lock
50mm Double locking long throw lock (+£42.00)
Union Strongbolt 5 Lever insurance deadlock brass finish
Union 5 lever Insurance Deadlock (Brass coloured finish) with rebate kit (+£43.20)
Union Strongbolt 5 Lever insurance deadlock chrome finish
Union 5 lever Insurance Deadlock (Chromecoloured finish) with rebate kit (+£43.20)
Easi T 5 Lever insurance deadlock stainless steel
Easi T Stainless Steel 5 Lever Insurance deadlock with rebate kit (+£48.00)
Union Strongbolt 5 lever insurance sashlock
Union 5 lever Insurance Sashlock (Brass coloured finish) with rebate kit (+£39.60)
Union Strongbolt 5 lever insurance sashlock chrome finish
Union 5 lever Insurance Sashlock (Chrome coloured finish) with rebate kit (+£39.60)
Easi T 5 lever insurance sashlock stainless steel
Easi T Stainless Steel 5 Lever Insurance sashlock with rebate kit (+£50.40)
Select your choice of locks if required. Mortice deadlocks & Sashlocks are the most secure and operated by key from either side. Brenton Padbolts are lockable by way of a padlock (not supplied) and the Long throw locks fit to (usually the rear) of the gates, doube locking is key operated from either side, single locking is key operated from front, with latch on rear to unlock. Mortice sashlocks require handles (see below) & both the mortice deadlock & sashlocks come with rebate kits.
Pegasus polished chrome lever lock handles
Pegasus polished chrome lever lock handles (+£14.33)
Pegasus electro brass lever lock handles
Pegasus electro brass lever lock handles (+£15.71)
Burford Suite Lever Lock Handle Old Hill 158mm x 55mm
Burford suite lever lock handles (+£17.76)
Steelworx Residential T Bar Lever on Backplate
Stainless Steel Steelworx lever lock handles (+£22.80)
Any additional details you think might be relevant to help us build your bespoke product.
Grand total
Current lead times are approx 6-8 weeks at present

Description

If you’re looking for a more contemporary garage door then the Snowdonia may be right up your street (or mountain!).

Our Snowdonia features five vertically stacked openings for glazing per door, all being internally beaded, meaning when you come to fit your glazing, it fits from the inside of your garage giving more security and more weatherproofing.

Want a specific width for the openings for glazing? Then please get in touch with your requirements, as like all our garage doors, the Snowdonia garage door can be customised to your specific requirements.

Based on a through wedged morticed and tenon jointed frame, the rear of the Snowdonia garage door features a hidden centre rail (visible from the rear only) for additional strength to the boarded area of the doors.

Despite being a new addition to our range of garage doors with windows, it is already proving very popular!

Made to measure, can be customised, choice of five smooth planed timbers – what are you waiting for!

Snowdonia garage doors – specifications

Available in a choice of five timbers –

Prime European Oak (Hardwood)
Idigbo (Hardwood)
Meranti (Hardwood)
Accoya (Acetylated Softwood)
Unsorted Scandinavian Redwood (Softwood)

Construction – Through, wedged morticed & tenoned
Height – Made to measure
Width – Made to measure
Stiles – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Transomes – 1 3/4″ x 1 3/4″ / 45mm x 45mm
Hidden rails (visible from rear only) – 3 3/4″ x 7/8″ / 95mm x 22mm
Bottom rails – 5 3/4″ x 1 3/4″ / 145mm x 45mm
Rebated meeting stiles (the doors overlap when closed)
Pre-beaded internally – The Snowdonia is supplied pre-beaded ready for glazing.
Glazing – Takes upto 12mm thick double glazing (not supplied)
