A true framed, ledged and braced garage door (otherwise known as FLB garage doors) with a solid, full thickness head/top rail and bottom rail.

Sound good? Whats more they are all made to measure and based on a through, wedged morticed and tenon jointed frame ensuring that they not only look great but are built to last.

Our mid-range wooden garage doors, the Alyn side hung garage doors are available made to measure in smooth planed Scandinavian Redwood (Softwood), Accoya (Modified Softwood), European Oak, Meranti or Idigbo (hardwoods) and feature rebated centre meeting stiles.

Get a price online for doors/openings from 1600mm to 2400mm high and for opening/door widths from 1500mm to 3000mm wide. For sizes smaller/larger than this please contact us.

Enter your door opening height & overall opening within your door frame if you are using your existing door frame.
If a door frame is required then enter your brickwork opening in height & width – frames can be selected as you build your order.

Want to use imperial instead of metric? Use our converter here

Enter the opening height (either structural opening height if a door frame is required or overall opening height if you are using your existing door frame). Get a price online for heights from 1600mm to 2400mm high. For heights smaller/larger than this please contact us.
Enter the opening width (either structural opening width if a door frame is required or overall opening width if you are using your existing door frame). Get a price online for widths from 1500mm to 3000mm high. For widths smaller/larger than this please contact us.
Scandinavian Redwood
Meranti
Idigbo Hardwood
A1 Accoya
Prime European Oak
Enter your sizes and choose from our 5 selected timbers. Please select from our range of timbers

Prices online are for heights between 1600mm to 2400mm high & 1500mm wide to 3000mm wide, for any sizes outside these please contact us at
enquiries@woodworkersuk.co.uk for a personalised costing.
Scandinavian Redwood (+...)
Meranti (+...)
Idigbo Hardwood (+...)
A1 Accoya (+...)
Prime European Oak (+...)
Please select from our range of timbers
Accoya is priced as suitable for painting, if you intend to stain the timber then please contact us for a price enquiries@woodworkersuk.co.uk.
Three piece door frames are supplied pre-jointed in same choice of timber as doors.
If selecting a door frame then we need the height from floor to underside of lintel.
In width we required the brickwork opening measurement.
We then manufacture the door frame to suit your opening and the doors to suit the door frame.
garage door frame sections
Please let us know which door you want to be the main opening door when viewed from the outside & whether the doors are to open in or out?
You can customise your doors by having stable style doors (top opens seperately from the bottom section), unenqually split doors (one door bigger than another)
What are unequally split garage doors
This is where one door of the pair is larger than the other, useful for if you want mainly pedestrian access through the doors.
Usually the smaller door will be around 915mm/3ft wide and would also be the door that opens first - this will be confirmed once an order is receiverd?
What are stable style garage doors
This allows the top section of the doors to open independently of the bottom section. Height of split on the Alyn can be whatever you require. Additional hinges & ironmongery will be required for the stable door option.
Enter the height of the split required if you wish to have stable style garage doors
what is a protruding cill
Cill is in supplied in same timber as the doors & frame, with exception being, a Meranti cill (Hardwood) is supplied for use with a Scandinavian Redwood set of doors & frame.
'Stick on' draught excluder (supplied loose) for meeting stiles of doors and when ordered, the door frame.
Garage door threshold seal
Placeholder
No floor seal
15mm high garage door floor seal
Yes - 15mm high (+£38.40)
20mm high garage door floor seal
Yes - 20mm high (+£54.00)
25mm high garage door floor seal
Yes - 25mm high (+£68.40)
Ideal if you have an out of level/sloping garage floor from side to side or you need to keep you doors up from the floor to clear obstructions as they are opened (rising driveways for example). Comes complete with adhesive.
garage door ironmongery options
All packs contain 2 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 3 Pair 450mm/18" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 2 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
All packs contain 3 Pair 450mm/24" Cranked band & gudgeon hinges, 1 x 18" Dropbolt, 1 x 15" Bow handle bolt & all fixings required. (Bow handle option for black on galvanised is standard black. Bow handle bolts are not manufactured in Stainless steel, so a second dropbolt is supplied in its place.
locking options for side hinged garage doors
No lock
200mm / 8" Black Brenton Padbolt
8" Black Brenton Padbolt (+£3.26)
200mm / 8" galvanised Brenton Padbolt
8" Galvanised Brenton Padbolt (+£3.60)
200mm / 8" Black on galvanised Brenton Padbolt
8" Black on Galvanised Brenton Padbolt (+£13.20)
200mm / 8" Marine Grade Stainless Steel Padbolt
8" Marine Grade Brenton Padbolt (+£34.80)
50mm Single locking long throw lock
50mm Single locking long throw lock (+£38.40)
50mm double locking long throw gate lock
50mm Double locking long throw lock (+£42.00)
Union Strongbolt 5 Lever insurance deadlock brass finish
Union 5 lever Insurance Deadlock (Brass coloured finish) with rebate kit (+£43.20)
Union Strongbolt 5 Lever insurance deadlock chrome finish
Union 5 lever Insurance Deadlock (Chromecoloured finish) with rebate kit (+£43.20)
Easi T 5 lever insurance sashlock stainless steel
Easi T Stainless Steel 5 Lever Insurance deadlock with rebate kit (+£48.00)
Union StrongBOLT 2200S BS 5 Lever Mortice Sashlock Brass 68mm Box
Union 5 lever Insurance Sashlock (Brass coloured finish) with rebate kit (+£39.60)
Union Strongbolt 5 lever insurance sashlock chrome finish
Union 5 lever Insurance Sashlock (Chrome coloured finish) with rebate kit (+£39.60)
Easi T 5 lever insurance sashlock stainless steel
Easi T Stainless Steel 5 Lever Insurance sashlock with rebate kit (+£50.40)
Select your choice of locks if required. Mortice deadlocks & Sashlocks are the most secure and operated by key from either side. Brenton Padbolts are lockable by way of a padlock (not supplied) and the Long throw locks fit to (usually the rear) of the gates, doube locking is key operated from either side, single locking is key operated from front, with latch on rear to unlock. Mortice sashlocks require handles (see below) & both the mortice deadlock & sashlocks come with rebate kits.
Pegasus polished chrome lever lock handles
Pegasus polished chrome lever lock handles (+£14.33)
Pegasus electro brass lever lock handles
Pegasus electro brass lever lock handles (+£15.71)
Burford Suite Lever Lock Handle Old Hill 158mm x 55mm
Burford suite lever lock handles (+£17.76)
Steelworx Residential T Bar Lever on Backplate
Stainless Steel Steelworx lever lock handles (+£22.80)
Any additional details you think might be relevant to help us build your bespoke product.
Grand total
Current lead times are approx 6-8 weeks at present

Description

Alyn Framed ledged and braced garage doors

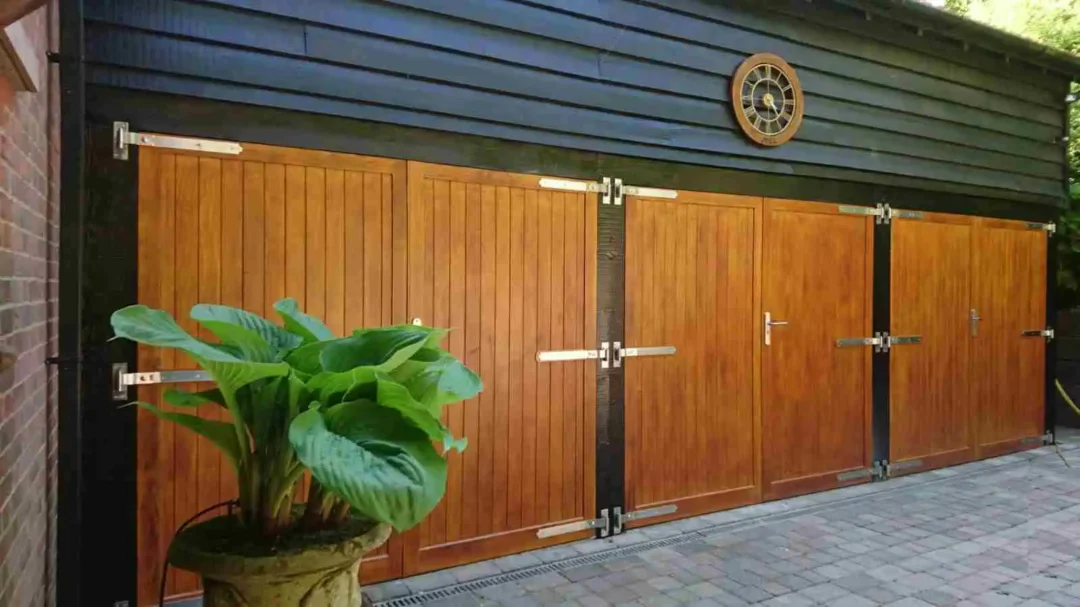

The Alyn is a true framed ledged and braced door, if you look at the front and rear pics above you’ll notice that the boarding ends where it comes into contact with the bottom rail, and the bottom rail is at the very bottom of the door.

These days you’ll find a lot of people trying to pass off ‘framed, ledged and braced doors’ that do not have a full thickness bottom rail (they have a hidden or barefaced bottom rail which can only be seen from the rear of the door) as can be seen on the centre rail in the Alyn doors above – these are not true framed ledged and braced doors (FLB). If you’re looking for a door without a solid bottom rail then check out our Clwyd garage doors still based on a through, wedged morticed and tenon jointed frame!

If you do choose a true framed, ledged and braced door then the other thing to check is the proportions of the bottom rail in comparison to the top rail or head – the bottom rail is always bigger! As with the Alyn above, the bottom rail is 5 3/4″ / 145mm while the top rail is 3 3/4″ / 95mm. The Reason for this is tried and tested over the years, the door would not look right with a 3 3/4″ high bottom rail and if you decided to match the top rail with the dimensions of the bottom rails (145mm) then again the doors look out of proportion!

So why a solid bottom rail?

The solid bottom rail gives the doors additional strength that is especially needed on wider doors. It also provides the added benefit of protecting the more vulnerable end grain of the tongue and groove boards (end grain can be difficult to protect adequately with paints or stains as it gets absorbed rather quickly and doesn’t last as long!), with a solid bottom rail the boarding of the doors is approx 5 3/4 inches (145mm) high up from the ground meaning that the boards cannot soak up any lying water.

Customise our Alyn garage doors
As with all our garage doors, the Alyn is made to measure and can be customised further. You may want an unequally split pair of doors for example or stable style garage doors, for anything not listed then please contact us.

Alyn garage doors – specifications

Available in five kiln dried timbers –

Prime European Oak (Hardwood)
Idigbo (Hardwood)
Meranti (Hardwood)
A1 Accoya (Acetylated Softwood)
Unsorted Scandinavian Redwood (Softwood)

Construction – Framed, ledged & braced garage doors , based on a through, wedged morticed & tenoned jointed frame
Height – Made to measure
Width – Made to measure
Stiles – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Heads/Top rails – 3 3/4″ x 1 3/4″ / 95mm x 45mm
Hidden rails (visible from rear only) – 3 3/4″ x 7/8″ / 95mm x 22mm
Bottom rails – 5 3/4″ x 1 3/4″ / 145mm x 45mm
Rebated meeting stiles (the doors overlap when closed).
