Heavy Duty Reversible Gate Hinges

Our reversible hinges are a heavy duty hinge with a variety of uses from gates, garage doors, external doors and even stable doors.

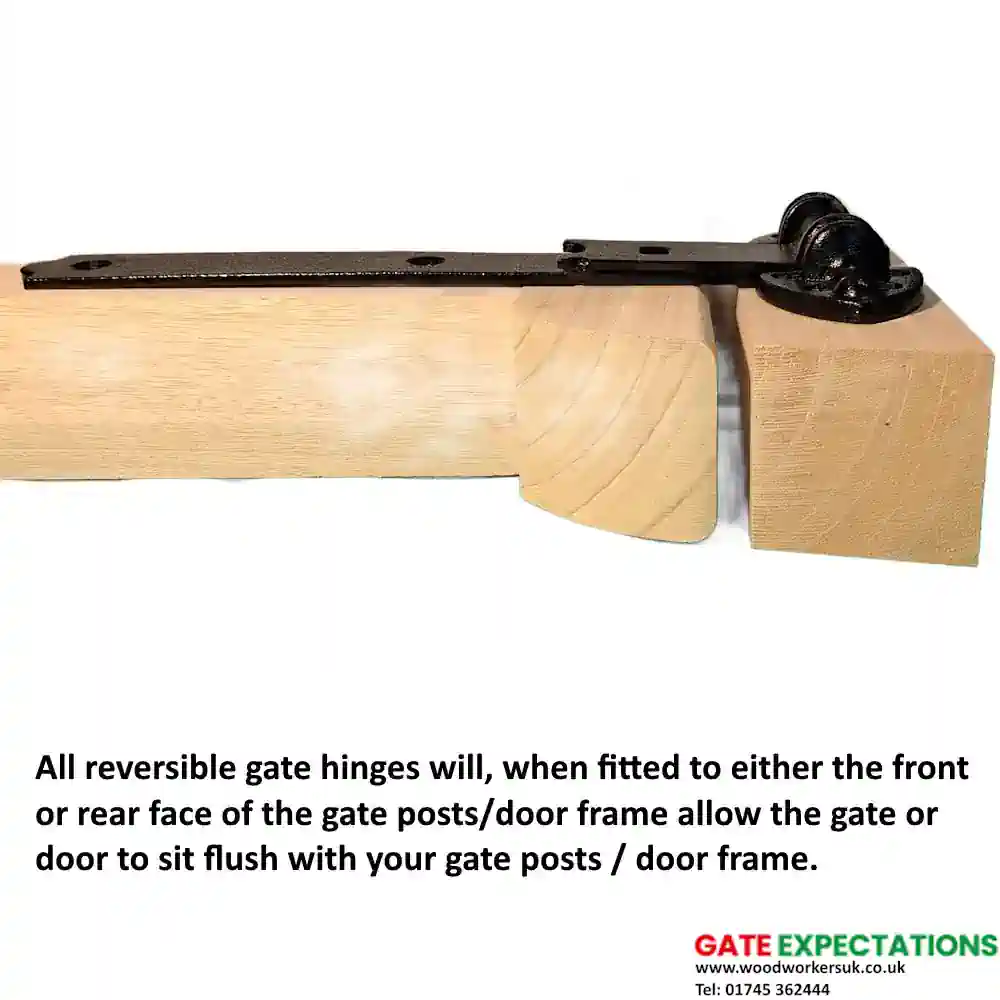

As with cranked band and gudgeon hinges, the Reversible hinges allow the gates/doors to sit flush with the gate post or door frame when fitted.

Unlike the cranked band and gudgeon hinges however, the reversible hinges cannot be lifted off, unless one hinge cup (per hinge) is removed!

Available in a choice of black, galvanised and black over galvanised. All our reversible hinges are sold in pairs.

The black and galvanised reversible hinges come without fixings (screws and bolts), but these can be added as an optional extra.

The black on galvanised Gatemate versions come with all fixings as standard.

Available sizes:

Black reversible hinges – 400mm (16″), 450mm (18″), 500mm (20″), 600mm (24″) 750mm (30″), 900mm (36″), 1050mm (42″)
Galvanised reversible hinges – 300mm (12″), 400mm (16″), 450mm (18″), 500mm (20″), 600mm (24″) 750mm (30″), 900mm (36″), 1050mm (42″)
Black on Galvanised – 450mm (18″), 600mm (24″), 900mm (36″)

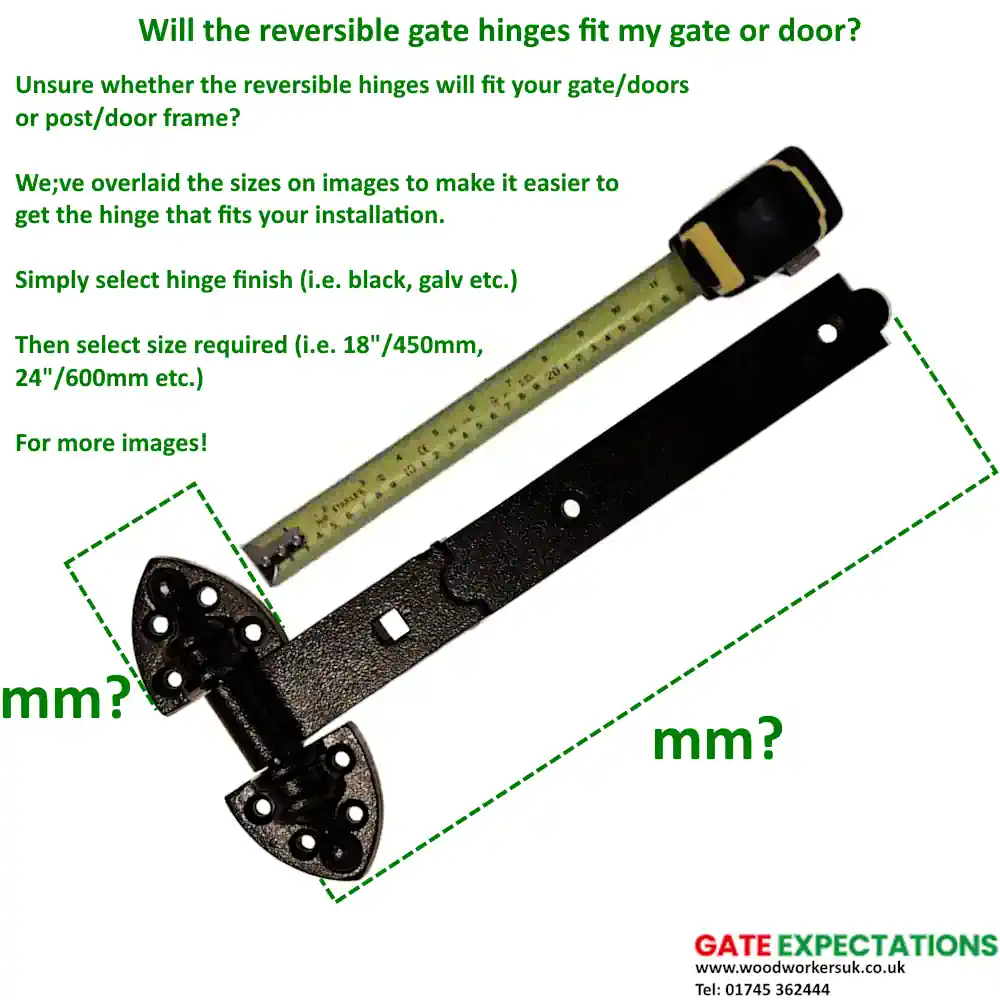

What size reversible gate hinge?

As with most gate hinges, the general rule for normal domestic use is to use a hinge that is at least one third the width of each gate or door.

For more heavy duty use then choose a reversible hinges that is half the width of each gate.

How many reversible hinges do I need?

Again a general rule is any door or gate over 2000mm tall should have a third hinge added.
