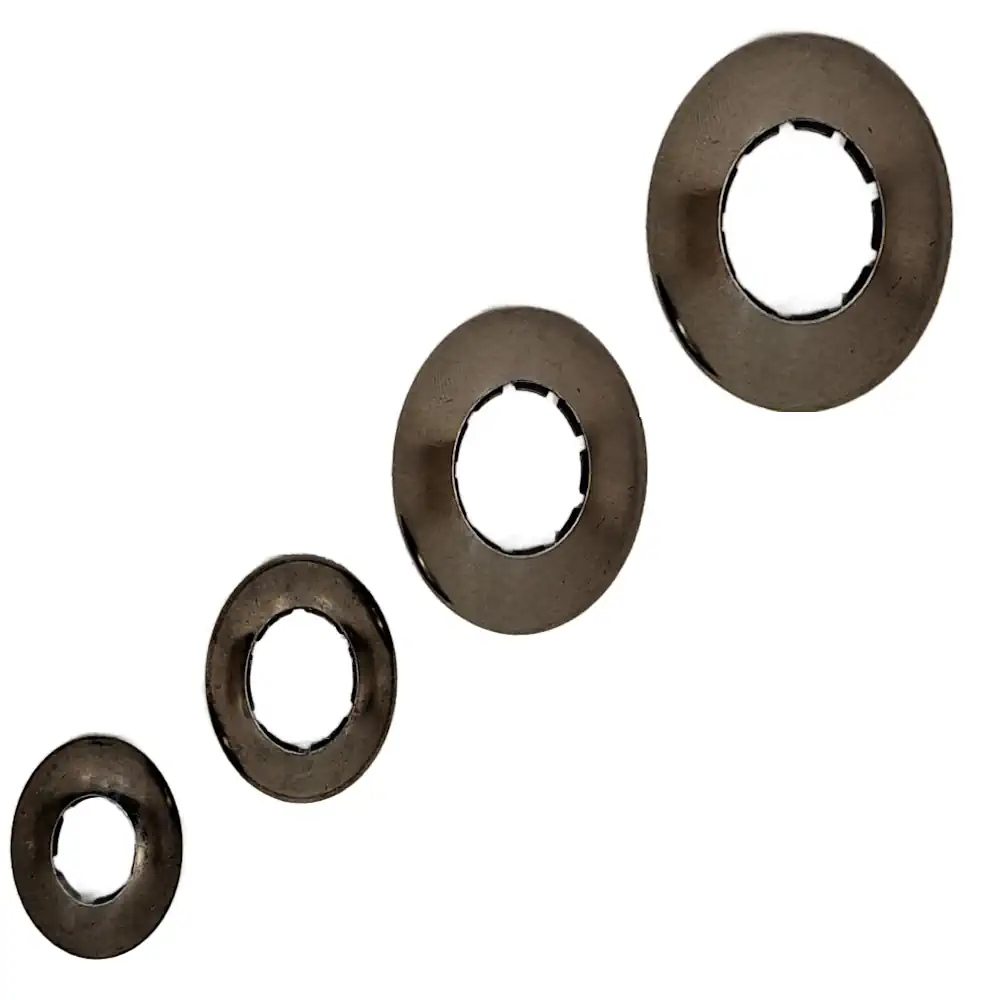

Gatemaster push on gate security collars available to suit 12mm, 16mm 19mm & 22mm hinge pins

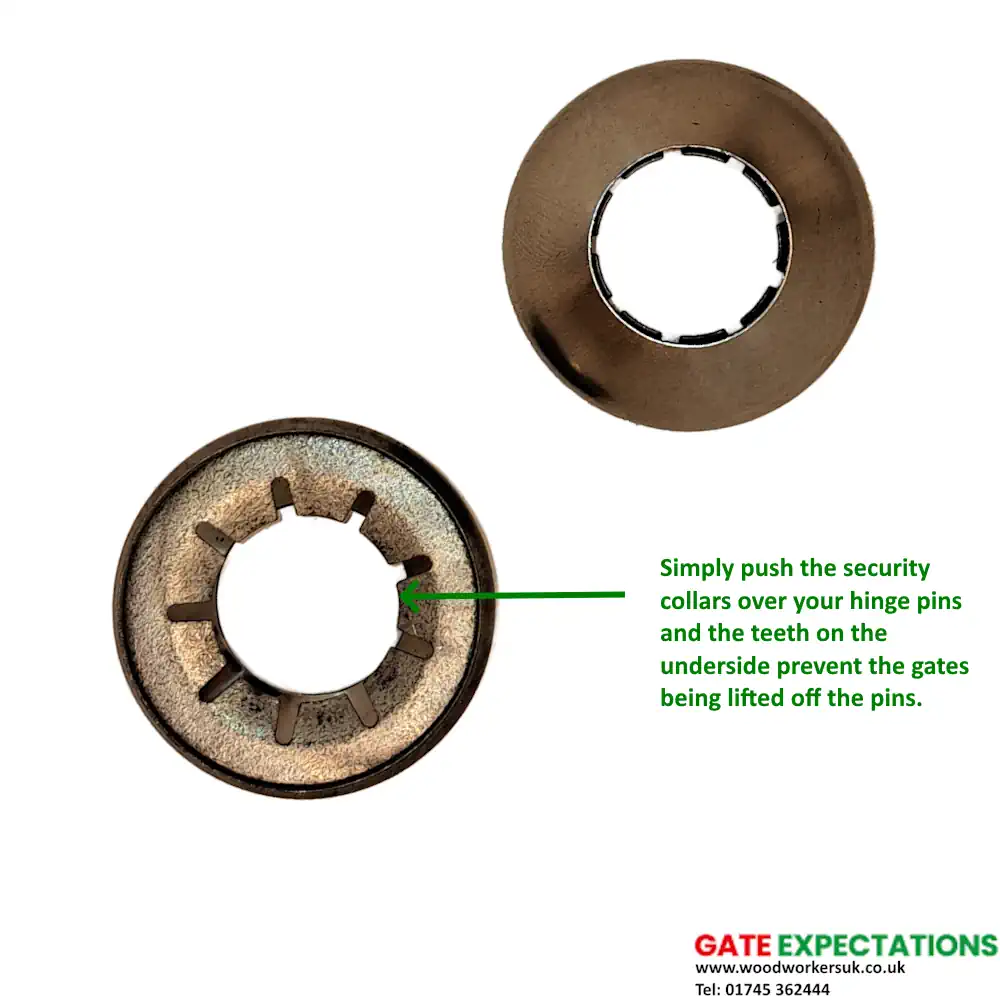

Teeth on the underside of the security collars prevent the hinges from being removed from the hinge pins

Click to enlarge

Push Fit Gate Security Collar

Price range: £2.69 through £4.44

Click for description:

If you’ve ever wondered how do I stop my gate being lifted off it’s hinges, then these push fit security collars are a must have!

No drilling required, simply push over your hinge pins.

Available in sizes to suit hinge pins of 12mm, 16mm, 19mm & 22mm.

Manufactured in Stainless Steel, sold individually.

Which ironmongery finish?

Marine grade stainless steel -

Unlike coated steel, the corrosion resistance comes from the stainless steel itself, so there is no coating to chip, peel or wear away. One of the most durable options for outdoor ironmongery.

Ideal for coastal environments and for use on acidic timbers such as Accoya, Oak, Western Red Cedar & Iroko.

Appearance silvery-grey in colour.

Black on galvanised -

This finish combines two protection systems into one: the steel hinge is first hot-dip galvanised, then a black polyester or epoxy powder coat is baked over the zinc layer. One coating fights corrosion chemically, the other shields it physically.

The idea is simple. Galvanising handles the long battle with weather, while the powder coat provides appearance and extra shielding.

Galvanised -

Hot spelter galvanising, often shortened to hot-dip galvanised or simply HDG, is one of the oldest and most trusted protective finishes used on steel ironmongery. Instead of sitting on the surface like paint or lacquer, it becomes part of the metal itself.

Appearance wise a silvery grey colour and can be quite a rustic looking finish.

Black powder coated -

An epoxy black finish is created by applying an electrostatically charged dry powder to bare self-colour steel and then baking it in an oven. The heat melts the powder into a continuous skin that wraps the metal in a uniform protective layer.

Unlike the "black on galv" finish, if the coating becomes scratched then the bare metal can rust.

Bright Zinc Plated -

Bright zinc plating, often called BZP or electro-galvanising (E-Galv), is created by passing an electrical current through a chemical bath that deposits a very thin layer of zinc onto steel. Unlike hot-dip galvanising, no molten metal and no alloy layers are involved. The coating is precise, controlled and smooth.

Appearance wise it's a shiny silvery-grey.

Self Colour -

Self colour steel is exactly what leaves the mill or the fabricator. No plating, no paint, no galvanising. Just bare carbon steel with its natural mill scale and workshop character intact. Usually used for fabrication (i.e. welding) where the finished item will be sprayed or painted upon completion.

* Not all items are available in every finish.

To suit pin size

Clear

Description

The Gatemaster push fit security collars simply push fit (hence the name!) over the pin of your hinges.

In some instances you may need to give them a gentle tap, despite the name push fit!

Can be used with either adjustable gate hinges, cranked band & gudgeon hinges or field gate hinges, and with gates or garage doors.

Simply select the size that corresponds to the pin size of your hinges.

If the security collars just push on, what is to stop someone just pulling them off? On the underside the Gatemater push fit security collars feature spring like hooks that grab the hinge pin preventing their easy removal.

Do the security collars really just push on over my hinge pin?
Depending on your hinges, then in some cases you may need to tap them on, to overcome the spring hooks on the underside of the security collars.

What size Gate Security collars do I need?

If you’ve existing hinges then you will need to measure the diameter of your hinge pins.

Sizes for the hinges that we supply –

Adjustable gate hinges –
12mm pin – 12″/300mm, 14″/350mm,
16mm pin – 18″/ 450mm,
19mm pin – 24″/600mm, 30″/750mm, 36″/900mm, 48″/1200mm,

Cranked band & gudgeon hinges –
12mm pin – 12″/300mm, 16″/400mm,
16mm pin – 18″/450mm, 24″/600mm,
19mm pin – 30″/750mm, 36″900mm, 42″/1050mm, 48″/1220mm,

Field gate hinges – All 19mm pins.
