Nannerch Driveway Gates

Our Nannerch drive gates feature a 165mm wide diminishing gunstock head which reduces down from the tallest point at hinge side by 2 3/4″ (70mm).

Available made to measure in European Oak, Idigbo, Meranti as well as Accoya (Acetylated Softwood) and Unsorted Scandinavian Redwood (Softwood) – the Nannerch is ideal if you want a gate for privacy but want a simple bit of shape at the top of the gates!

Online prices from 900mm to 2100 in height & opening widths from 1600mm upto 4000mm. For any sizes outside these please contact us.

For gate width we require the overall combined (two gate) widths.

Want to use imperial instead of metric? Use our converter here

Enter your required gate height in mm, usually you will allow 50mm / 2" clearances under the gates.
Enter your overall two gate combined width
Scandinavian Redwood (+...)
Meranti (+...)
Idigbo Hardwood (+...)
A1 Accoya (+...)
Prime European Oak (+...)
Please select from our range of timbers
Accoya is priced as suitable for painting, if you intend to stain the timber then please contact us for a price enquiries@woodworkersuk.co.uk.

Prices online are for heights between 900mm to 2100mm high (at highest point) & 1600mm wide to 4000mm wide, for any sizes outside these please contact us at
enquiries@woodworkersuk.co.uk for a personalised costing.
Curved joggles to give the gates strength
Curved (Standard)
Pyramid joggles to give the gates strength
Pyramid
Angled joggles to give the gates strength
Angled
Rounded joggles to give the gates strength
Rounded (+£24.00)
Inverted joggles to give the gates strength
Inverted (+£24.00)
Birdsmouth joggles to give the gates strength
Birdsmouth (+£48.00)
Joggles are the protrusions on top corners of the gates, these give the mortice & tenon joints strength. As standard the joggles are arched/curved.
Optional cover strip sits over the 10mm clearance gap between the two gates in the centre. Supplied loose for fixing once gates have been hung.
50/50 split is where both gates of the pair are the same size. Unequally split gives you one gate larger than the other so one gate can be used as a pedestrian access gate.
Maximum width of a single gate is 2000mm. Please state preferred width of gates for split. For example if total width is 3000mm, you can state 1000mm and 2000mm.
Which gate is the smaller gate when viewed from the front? Left or Right.
Example of the open boarding within a gate
Open Boarded
Close up of a close boarded / fully boarded section of a gate
Close Boarded

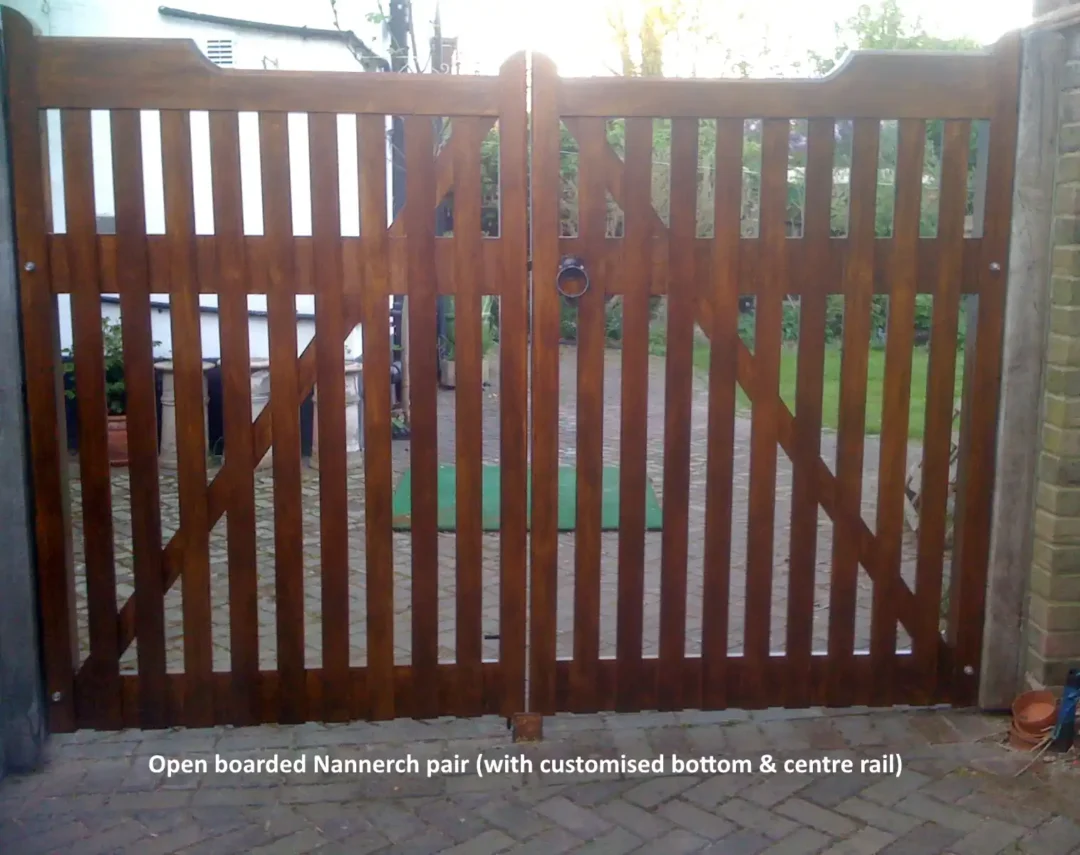

Open boarded or slatted gates are great if you live in a windy area, as they allow the wind to pass through the gates. Larger close boarded gates can be difficult, at times, to open into a strong wind; you run the risk of the wind dragging them out of your hands; with an open boarded gate, this can be greatly reduced.
Usually with a gate, the bracing and rails are exposed on the rear. Choose double boarded/double sided gates if you don't want to see the rails/bracing.
Not recommended however if you are intending to automate the gates.
standard bracing or double braced driveway gates

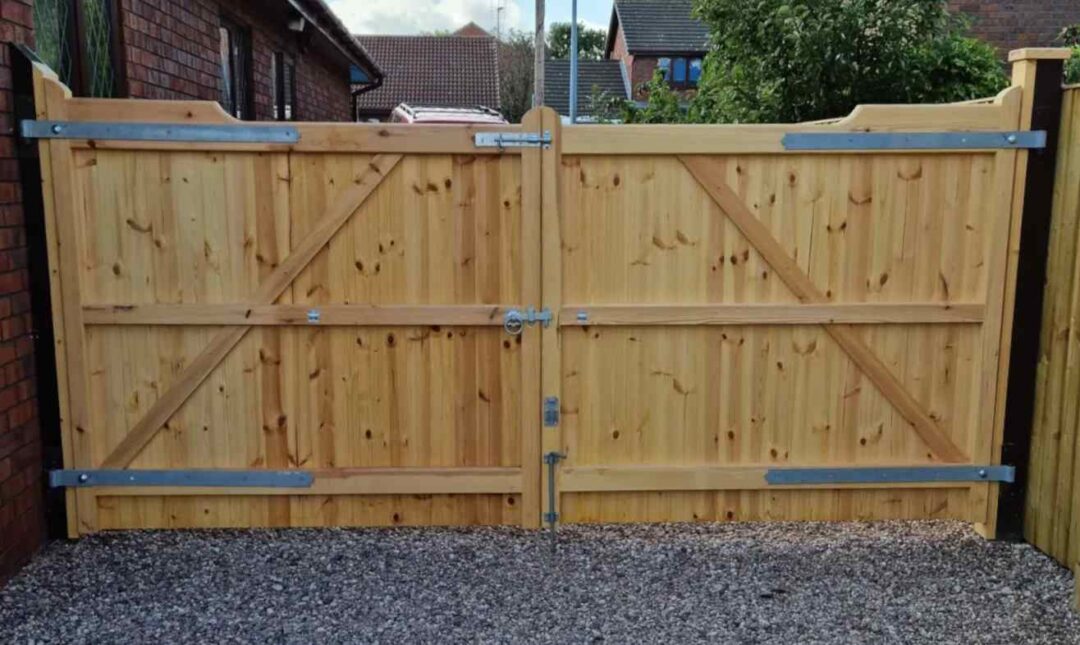

The rear of the gates has diagonal bracing, this should point down to the bottom rail and spreads the weight to the hinge side. In some instances or if you are automating the gates with an above ground system the you would double brace the gates so the bracing forms an 'X' on the rear of each gate. On shorter gates double bracing willappear as an upturned 'V'. If you require this or are using an above ground automation system please select double bracing.
add a full thickness bottom rail
As standard gates have bottom rail that can only be seen from rear, from the front it is covered by the cladding. Add a full thickness bottom rails means the bottom rail can be seen from both sides of the gates, bottom rail being 5 3/4" / 145mm tall with the cladding being jointed into the rail. Bottom rail is required if you intend to automate the gates with a below ground automation system.
Fixing stile options
Posts for fixing to a wall or other structure. Priced per stile. Supplied in same timber as your gates.
Posts for fixing to a wall or other structure. Priced per stile.( 95mm x 70mm with 20mm x 20mm loose stop) supplied in same timber as your gates.
4 way weather cut softwood posts
100mm x 100mm (+£54.00)
4 way weather cut softwood posts
125mm x 125mm (+£79.20)
4 way weather cut softwood posts
150mm x 150mm (+£112.80)
square tanalised softwood posts
175mm x 175mm (+£163.20)
square tanalised softwood posts
200mm x 200mm (+£187.20)
All priced per post. As a rule of thumb post size should be for every 12" (300mm) of gate, posts should be 1" (25mm) + 1" (25mm). Posts upto 150mm / 6" square are 4 way weather cut on top. Posts over this are square cut. I.E. 4ft (1220mm gate) should have a 125mm / 5" post
Ironmongery options for driveway gates
Ironmongery packs for your driveway gates. All packs contains 2 Pair 18" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
Ironmongery packs for your driveway gates. All packs contains 3 Pair 18" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
Ironmongery packs for your driveway gates. All packs contains 2 Pair 24" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
Ironmongery packs for your driveway gates. All packs contains 3 Pair 24" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
Ironmongery packs for your driveway gates. All packs contains 2 Pair 36" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
Ironmongery packs for your driveway gates. All packs contains 3 Pair 36" Adjustable gate hinges, 2 x 18" Dropbolts & 1 x 6" Ringlatch. All fixings included.
200mm / 8" Black Brenton Padbolt
8" Black Brenton Padbolt (+£3.26)
200mm / 8" galvanised Brenton Padbolt
8" Galvanised Brenton Padbolt (+£3.60)
200mm / 8" Black on galvanised Brenton Padbolt
200mm/8" Black over Galv Brenton Padbolt (+£13.20)
200mm / 8" Marine Grade Stainless Steel Padbolt
8" Marine Grade Stainless Steel Brenton Padbolt (+£34.80)
Union Strongbolt 5 Lever insurance deadlock brass finish
Union 5 lever Insurance Deadlock (Brass coloured finish) (+£28.80)
Union Strongbolt 5 Lever insurance deadlock chrome finish
Union 5 lever Insurance Deadlock (Chromecoloured finish) (+£28.80)
Easi T 5 Lever insurance deadlock stainless steel
Easi T Stainless Steel 5 Lever Insurance deadlock (+£37.20)
Perry 70mm Double locking long throw gate lock
Perry 70mm Double locking long throw lock (+£44.40)
Perry 70mm Single locking long throw gate lock
Perry 70mm Single locking long throw lock (+£42.00)
Select your choice of locks if required. Mortice deadlocks are the most secure and operated by key from either side. Brenton Padbolts are lockable by way of a padlock (not supplied) and the Long throw locks fit to (usually the rear) of the gates, doube locking is key operated from either side, single locking is key operated from front, with latch on rear to unlock.
Any additional details you think might be relevant to help us manufacture your gates.
Grand total
Current lead times are approx 8-10 weeks at present

Description

Our Nannerch drive gates feature a 165mm wide diminishing gunstock head which reduces down from the tallest point at hinge side by 2 3/4″ (70mm).

Available made to measure in European Oak, Idigbo, Meranti as well as Accoya (Acetylated Softwood) and Unsorted Scandinavian Redwood (Softwood) – the Nannerch is ideal if you want a gate for privacy but want a simple bit of shape at the top of the gates!

As a pair of gates, the Nannerch can be manufactured as an unequally split pair with one gate wider than the other to give you a pedestrian access within the pair.

As well as the drive gates pictured, our Nannerch gates are also available as a pedestrian gate meaning you can have a complete matching set of drive gates and pedestrian gates to complete the look, both the pedestrian version and driveway pair can be manufactured either as the more commonly requested close/fully boarded (either vertically or chevron/diagonally boarded) or open boarded.

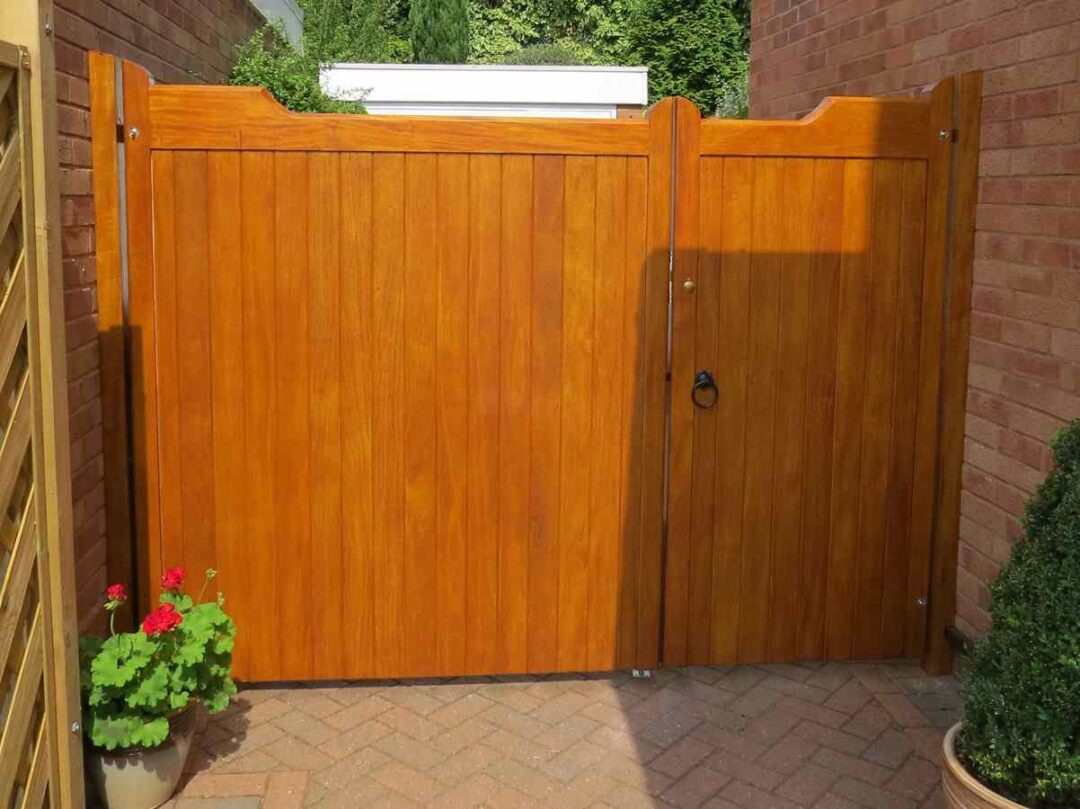

The Nannerch gates pictured have been customised and are an ‘unequally split’ pair (i.e. one gate is bigger than the other), the traditionally split 50/50 split (each gate being the same size) are also available – please contact us with your requirements.

Want a bigger or smaller pair of gates than what is pictured? No problem, as with every pair of drive gates pictured on our website the Nannerch drive gates are made to suit your own drive – however unusual the sizes, give us a call or email for a full personalised costing!

Have we a pedestrian gate to match? You bet!

Nannerch driveway gates – specifications

All top edges on any horizontal rails of the Nannerch feature an angled water run off, this stops the build up of moisture on your gates and makes for a longer lifespan. The stiles of the Nannerch (vertical outer uprights of the gate frame) also have rounded outer edges.

Height – Made to measure
Width – Made to measure
Stiles – 2 3/4″ x 2 3/4″ / 70mm x 70mm
Gunstock head – 6 1/2″ diminishing to 3 3/4″ / 165mm diminishing to 95mm
Hidden rails – (Visible from rear only) 2 3/4″ x 1 7/8″ / 70mm x 48mm
Boarding – 3 3/4″ x / 95mm x 15mm

Available in a choice of five timbers –

Unsorted Scandinavian Redwood (Softwood)
Accoya (Modified Acetylated Softwood)
Meranti (Hardwood)
Idigbo (Hardwood)
Prime European Oak (Hardwood)
Construction – Wedged morticed and tenon jointed



Our Guarantee

Gate Expectation’s mission is to bring the highest quality bespoke measured wooden gates, side hung wooden garage doors and general joinery items to the market at a quality and price point that can’t be matched.

If not completely satisfied we offer 30-day no hassle returns on all our off-the-shelf range.

Three generations of master carpentry and joinery experience in each and every product. Read more about our history here.
